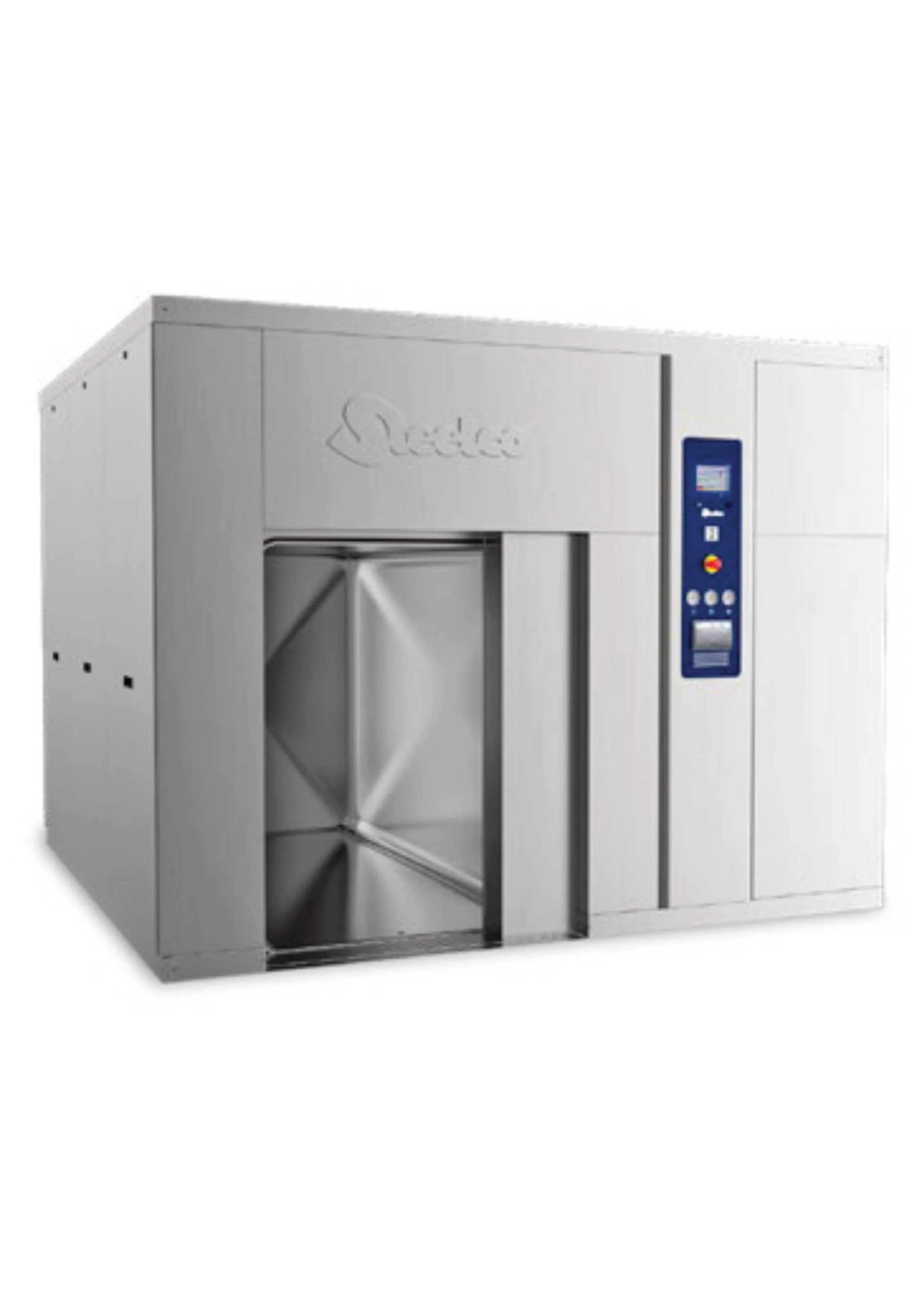

Steelco VS L - Bulk
Steelco VS L - Bulk Capacity Range
Steelco steam sterilizers VS L series are designed for laboratory applications including research laboratories, bio-containment and animal care facilities.
VS L bulk sterilizers are engineered to offer best in class solutions for the reduction of energy and water consumption to give users lowest operating costs per load, ECO water saving packages reduce water consumption to nearly zero depending on chosen model and options.
Up to 10 standard chamber sizes with a volume from 905 to 9.070 litres are available with pressure vessel and relief valves that are PED and/or ASME marked or according to the directives of the country of destination.
ECO water saving options, unrivaled levels of efficiency.
Single and Double Door pass through options.
Manual hinged or automatic sliding door
Technical service access either on the left or right loading side.
Custom sizes available.
Standard Configuration
Load Control Probe
Hinged front cabinet panel
HMI - touch screen display operating panel with PLC
On board thermal printer on loading side
Gravity Cycle
Liquid Cycle
Pre-Post Vacuum cycles
Leak Test
DART (Daily Air Removal Test) cycle
Chamber made of AISI 316L stainless steel fine satin finishing
Frame and external panels made of AISI 304 stainless steel
Single door
Building steam
Piping and valves in copper-brass
Water ejector
ECO CD - cool down system
Solenoid Valves
Cart and Carriage
Fixed height loading carriage and loading car with 3 height adjustment shelves. Shelves can hold 220 lbs evenly distributed on the shelf.
Load cart for floor loading: Upon request is possible to order a load cart for floor loading installation made of 316 stainless steel.
